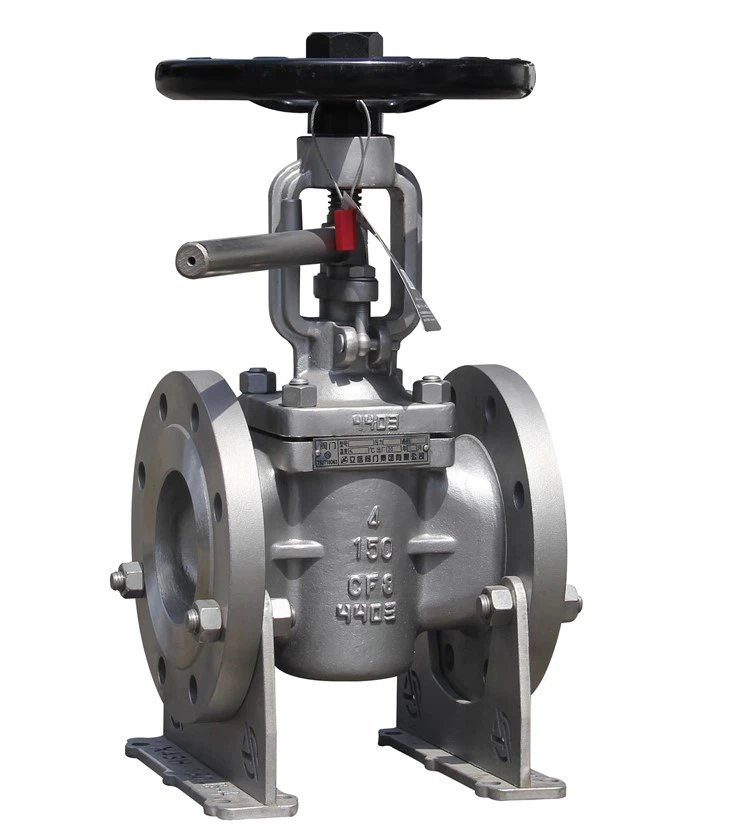

Metal sealing Lift Plug Valve

Product Introduction

• Flange connection ANSI lifting hard seal plug valve is suitable for cutting off or connecting pipeline media in various working conditions such as petroleum, chemical, fertilizer, power industry, etc. with nominal pressure Class 150~1500LB and working temperature of -29~550℃.

Main structural features

1. The product features a rational structure, reliable sealing, excellent performance, and attractive design.
2. The valve opens and closes with the sealing surfaces separated, preventing wear.
3. Bidirectional flow ensures easy installation and use.
4. Component materials and flange dimensions can be customized based on actual operating conditions or user requirements to meet diverse project needs.

Working principle of valve opening and closing

• Valve opening and closing process: When opening the valve, first rotate the handwheel to make the plug rise and separate from the sealing surface, then rotate the handle 90 degrees to make the plug channel communicate and achieve the purpose of opening.
• The closing process is to first rotate the handle 90 degrees to make the plug channel vertical, and then rotate the hand wheel to lower the plug to achieve sealing.

Production Range:
Size Range: DN 1/2" to 20" , DN15-DN500

Pressure Range: 150Lb-1500Lb

Available Materials: Forging for NPS ≤ 2 (A105, A182 F304, F304L, F316, F316L, F51, F53, A350 LF2, LF3, LF5), Casting (A216 WCB, A351 CF3, CF8, CF3M, CF8M, A995 4A, 5A, A352 LCB, LCC, LC2), Monel, Inconel, Hastelloy

Technical Specifications:

• Design & manufacture according to API 6D,

• Face-to-face according to API 6D, ASME B16.10

• End Connection according to ASME B16.5 (RF, RTJ), ASME B16.47(RF, RTJ), MSS SP-44 (NPS 22 Only), ASME B16.25 (BW)

• Test & inspection according to API 598, API 6D

• Also available per NACE MR-0175, NACE MR-0103, ISO 15848
